HDMI Switcher Splitter Full HD 4K Video Split 2 in 8 Out Dual Display

188,000 /=

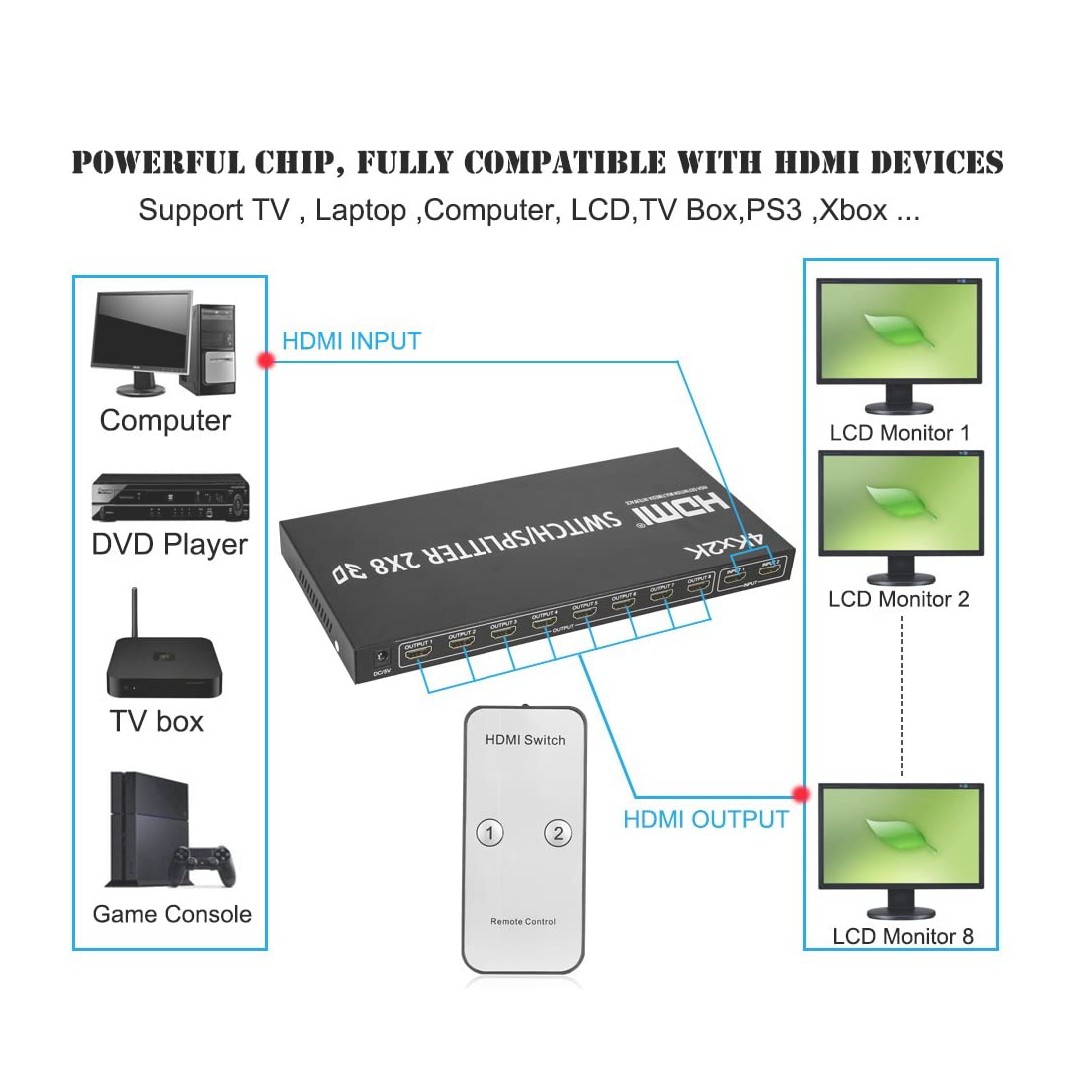

This HDMI Switcher/ Splitter 2x8 can connect 2HD signal sources with 8HD display terminals. It can easily split 2-way HD signal sources to 8 HDTVs or projectors which support HD. It also can amplify the HDMI signal.

Pre-Order

Specifications :
Support audio format: LPCM
Max bandwidth:300MHz
Max baudrate:3Gbps
Max working current:1.35A
Power adapter format:
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
Operating Temperature range: (-15 to +55°C)
HDMI resolution :4k/1080p/720i/576i/480p/480i
Operating Humidity range:5 to 90%RH (No Condensation)
Dimension (L x W x H):278x136x24 (mm)
Weight:640g

Package included:
1. 2X8 HDMI Switcher/Splitter
2. IR Remote Control
3. 5V DC Power adapter
4. User Manual


Features & details

  • The two input HD signal sources can be switched freely. The HDMI Switch/Splitter 2x8 can support highest video resolution 3840x2160/30hz
  • Support HDMI1.4b,3D,highest video resolution 3840x2160/30Hz,3Gbps data rate and tmds clock up to 300MHz
  • Support 8/10/12 bit deep colorSupport AWG26 HDMI standard cable: When the resolution is 1080p and below, input up to 10metres,out put up to 15 metres; When the resolution is 4K,input up to 5 metres ,output up to 10 metres
  • Support single high definition display and multiple output HD signal sources, such as DVD Players, A/V receivers and Set Top Boxes
  • Remote Control for operational flexibility and easy control,Need DC5V/1A power supply,Support video format: 8/10/12 bit deep color.
